Virtual clone

Clone robot setups

Create a virtual clone of virtual or physical robots already configured in the cell to enable offline or remote path planning, simulation and development. This allows you to continue working without being connected to the physical robot, e.g. non-realtime usage of controllers.

Creating a virtual clone of a physical robot is useful when you want to continue working without being connected to the physical robot, e.g. for testing, offline usage, or non-realtime usage of controllers for simulation.

  1. Open the settings app and go to the "Cell" tab.
  2. Select the desired robot and click on Clone robot.
    A pop-up is displayed.
  3. Click "Clone" to start the cloning process.
    After the cloning process is complete, the clone is now available in your cell.

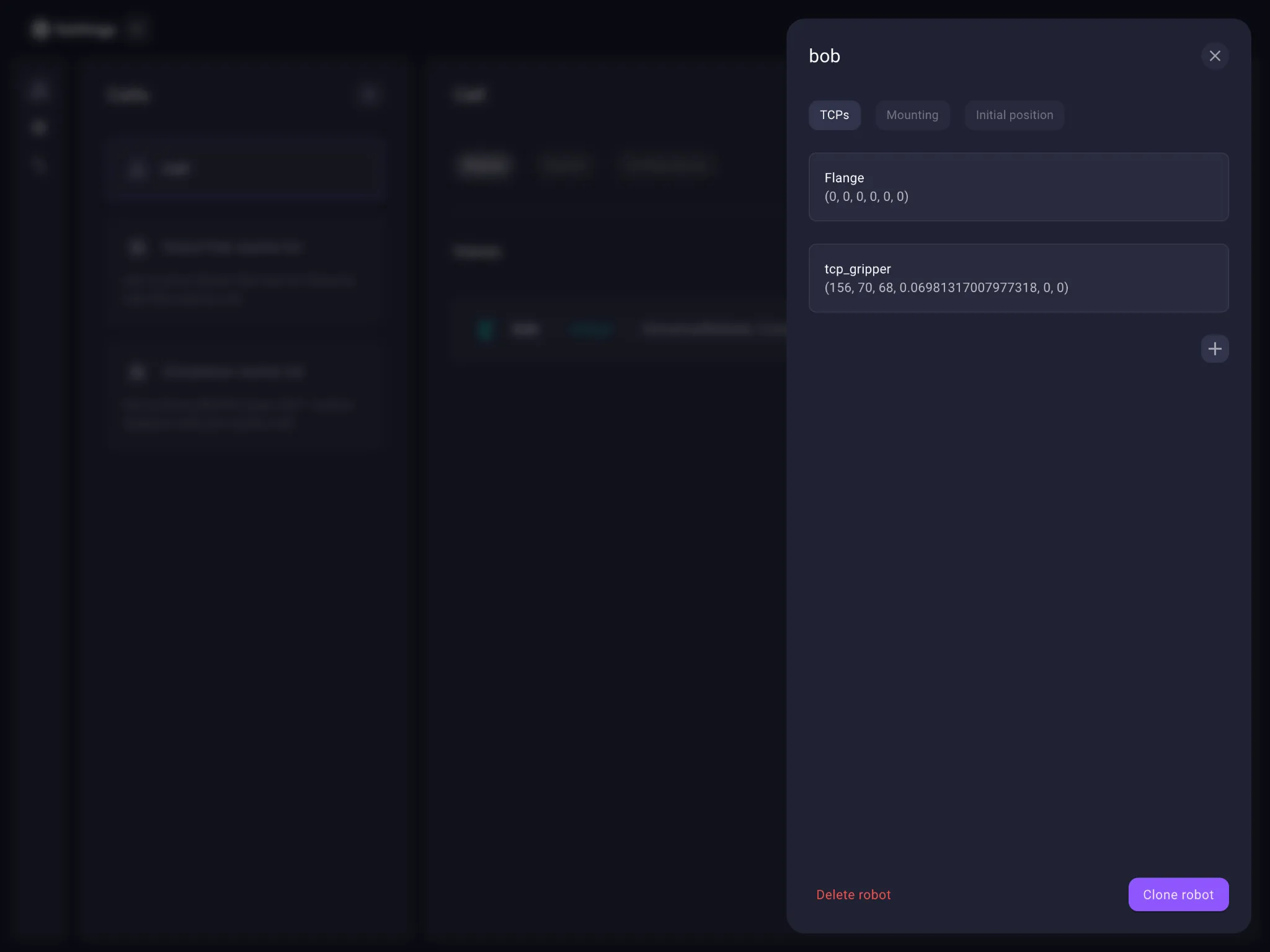

Robot details with Clone Robot button
