OPC UA

Read a value

Read a device value with opcua_read(host, node_id, config) function.

• host is the address of the OPC UA server, e.g. opc.tcp://0.0.0.0:4840.

• node_id represents the string notation of the OPC UA node id, e.g. ns=2;s=my_node. Read more about the OPC UA node id here (opens in a new tab).

• config is an optional parameter you can provide to configure the OPC UA client. It must be passed as the last argument. Currently supported config parameters are:

  • request_timeout_seconds: The time in seconds to wait for the response from the server.

host = "opc.tcp://0.0.0.0:4840"
node_id = "ns=2;s=my_node"
config = {
	request_timeout_seconds: 10
}
result = opcua_read(host, node_id, config)
print(result) // prints the value

Write a value

Write a value to the OPC UA node with opcua_write(host, node_id, value, config).

• host is the address of the OPC UA server, e.g. opc.tcp://0.0.0.0:4840.
• node_id represents the string notation of the OPC UA node id, e.g. ns=2;s=my_node. Read more about the OPC UA node id here (opens in a new tab).
• value is any primitive data type supported by Wandelscript.
• config is an optional parameter you can provide to configure the OPC UA client. It must be passed as the last argument. Currently supported config parameters are:
  • request_timeout_seconds: The time in seconds to wait for the response from the server.

host = "opc.tcp://0.0.0.0:4840"
node_id = "ns=2;s=my_node"
config = {
	request_timeout_seconds: 10
}
opcua_write(host, node_id, True, config)

Call method

Call a function defined on the OPC UA server using opcua_call(host, object_id, function_id, argument1, argument2, ..., config). Pass any number of arguments. It returns the function’s return value from the OPC UA server.

• host is the address of the OPC UA server, e.g. opc.tcp://0.0.0.0:4840.
• object_id represents the string notation of the OPC UA node_id where the function is defined, e.g. ns=2;s=my_node.
• function_id represents the string notation of the OPC UA node_id, e.g. ns=2;s=my_node.
• Arguments can be parameters (0, 1, or more) of primitive data types to pass to the OPC UA function. The values are sent in the order they are defined.
• config is an optional parameter you can provide to configure the OPC UA client. It must be passed as the last argument. Currently supported config parameters are:
  • request_timeout_seconds: The time in seconds to wait for the response from the server.

host = "opc.tcp://0.0.0.0:4840"
object_id = "ns=2;s=my_object"
function_id = "ns=2;s=my_function"
config = {
	request_timeout_seconds: 10
}
opcua_call(host, object_id, function_id, True, config)

Get the value returned by the OPC UA function with result. The value returned will be assigned to result.

host = "opc.tcp://0.0.0.0:4840"
object_id = "ns=2;s=my_object"
function_id = "ns=2;s=my_function"
config = {
	request_timeout_seconds: 10
}
result = opcua_call(host, object_id, function_id, True, config)
print(result)

Wait for the OPC UA signal

Wait until a node has the desired value using wait_for_opcua_value(host, node_id, value, config). The function will check for equality between the provided value and the node value until both values match. Equality checks are executed whenever the OPC UA server sends a data change notification.

This is the default behavior:

• host is the address of the OPC UA server, e.g. opc.tcp://0.0.0.0:4840.
• node_id represents the string notation of the OPC UA node id, e.g. ns=2;s=my_node. Read more about the OPC UA node id here (opens in a new tab).
• value is any primitive data type supported by Wandelscript.

This script will wait until the node specified by node_id has the value True:

host = "opc.tcp://0.0.0.0:4840"
node_id = "ns=2;s=my_node"
result = wait_for_opcua_value(host, node_id, True)
print(result) // prints the value

Configure data exchange with config parameter

Wandelscript provides several config parameters to set up the data exchange between the server and client. These parameters are applied via an OPC UA subscription. When subscribing to a data exchange, the server informs the client about all data changes happening for the respective node. The provided information can be monitored and received by the client.

Use the official OPC UA documentation to

1. subscribe to a data exchange (opens in a new tab) and
2. monitor data exchanges (opens in a new tab)

Available config parameters

Available config parameters and their default values are:

Config can be set completely, partially, or not at all. If not set, default values are used.

config = {
	requested_publishing_interval: 1000
	requested_lifetime_count: 10000
	max_notifications_per_publish: 1000
	priority: 0
	queue_size: 1
	sampling_interval: 0.0
	request_timeout_seconds: 4
}
wait_for_opcua_value(host, node_id, node_value, config)

Server responses

Servers can respond to the requested config with their own settings if certain restrictions are in place. In this case, the subscription will be created with the modified configuration, and you'll be notified in the logs.

Your desired configuration might request a publishing interval of 1000 ms:

config = {
	requested_publishing_interval: 1000
	sampling_interval: 0.0
}
wait_for_opcua_value(host, node_id, node_value, config)

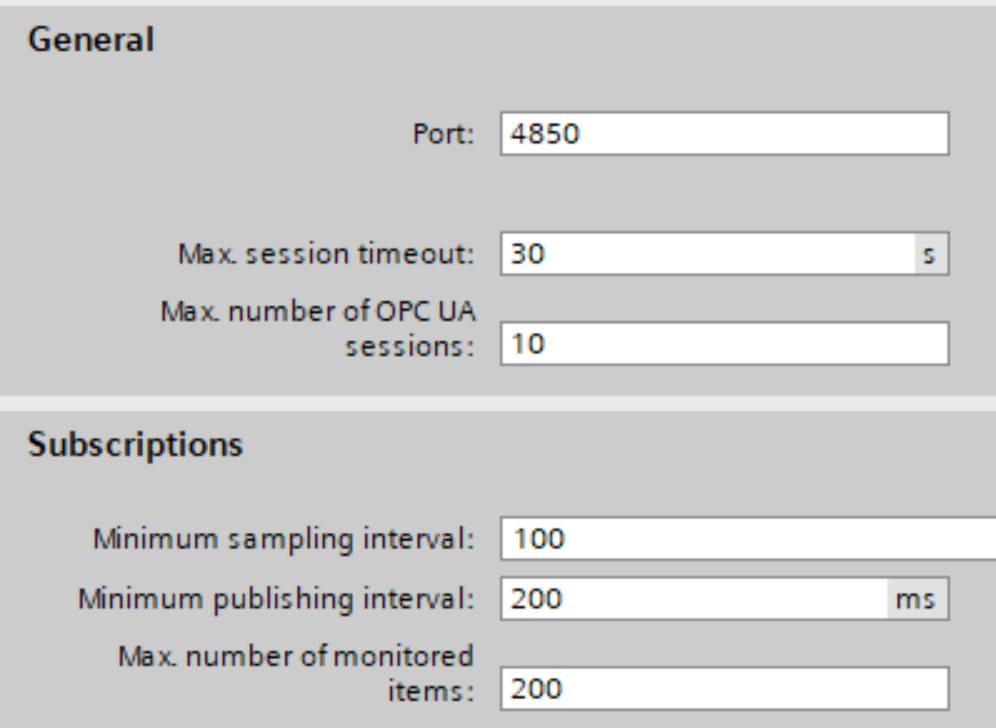

The server configuration might set the publishing interval to 200 ms and thus override the requested configuration.

To minimize the risk of such a scenario, we recommend configuring your subscription settings on the OPC UA server side as closely as possible to your desired values.
If this is not possible due to restrictions, set the requested config values as close as possible to the server’s configuration.

Use NOVA authentication with OPC UA

The Wandelbots NOVA OPC UA client supports username and password–based authentication. Provide the username and password together with host:

host = "opc.tcp://username:password@0.0.0.0:4840"

Example: Communicate with a camera

This example shows the process of communicating with a Cognex camera that is set up to detect a pattern.

# - - - - - Load a job onto the camera: - - - - -
host = "your server host"
job_name = "07_pattern_detection.job"
object_id = "ns=2;s=VisionSystem"
function_id = "ns=2;s=LoadJob"

opcua_call(host, object_id, function_id, job_name)

# - - - - - Write a value to the camera: - - - - -
host="your server host"
node_id = "ns=2;s=Pattern_1.Tool_Enabled"
value = 1

opcua_write(host, node_id, value)

# - - - - - Trigger an image acquisition: - - - - -
opcua_call(host, "ns=2;s=VisionSystem", "ns=2;s=TriggerManualAcquisition")

# - - - - - Read values from the camera: - - - - -
opc_tags = ["ns=2;s=Pattern_1.Tool_Enabled", "ns=2;s=Pattern_1.Fixture.X", "ns=2;s=Pattern_1.Fixture.Y", "ns=2;s=Pattern_1.Fixture.Angle"]

for i = 0..<len(opc_tags):
	opc_tag = opc_tags[i]
	result = opcua_read(host, opc_tag)
	print(opc_tag)
	print(result)

Obtain a certificate

There are two ways you can obtain a certificate:

• CA-signed certificate: You can obtain a certificate from a Certificate Authority (CA). Contact the CA of your choice to get certified.
• Self-signed certificate: You can create a self-signed certificate using the openssl command in your terminal.

  openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -days 365 -nodes
  A self-signed certificate will be generated at the location of the command execution. The generated files key.pem and cert.pem will be used in the next steps.

Upload certificate

Wandelbots NOVA provides a storage service where you can store data. You will upload the key.pem and cert.pem files to a folder in the storage service and later use them in Wandelscript.

Upload the cert.pem file

curl --request PUT \
--url http://$(YOUR_NOVA_INSTANCE)/api/v1/cells/$(CELL_NAME)/store/objects/certs/cert.pem \
--form "AnyValue=@cert.pem"

Upload the key.pem file

curl --request PUT \
--url http://$(YOUR_NOVA_INSTANCE)/api/v1/cells/$(CELL_NAME)/store/objects/certs/key.pem \
--form "AnyValue=@key.pem"

The folder name in the storage service is specified via the URL path, in this case certs. If you want a different folder name or structure, adjust the URL path accordingly and make sure to include the file extension .pem.

Pass certificate

Wandelscript functions will use the certificate to establish a secure connection with the OPC UA server.

Use the config parameter security_config to provide the certificate in any of the Wandelscript OPC UA communication functions mentioned above.

host = "opc.tcp://0.0.0.0:4840"
node_id = "ns=2;s=my_node"
config = {
    request_timeout_seconds: 10,
    security_config: {
        security_policy: "Basic256Sha256",
        message_security_mode: "SignAndEncrypt",
        client_certificate_path: "certs/cert.pem",
        client_private_key_path: "certs/key.pem"
    }
}
opcua_write(host, node_id, True, config)

The security configuration allows for four parameters:

1. security_policy specifies the algorithms to use during secure communication.
   Supported algorithms are:
   • Basic128Rsa15
   • Basic256
   • Basic256Sha256
2. message_security_mode indicates the level of security applied to the messages
   • Sign
   • SignAndEncrypt
3. client_certificate_path indicates the path to the client certificate file.
4. client_private_key_path indicates the path to the client private key file.
